LABELING SOLUTIONS
IMA LABELING

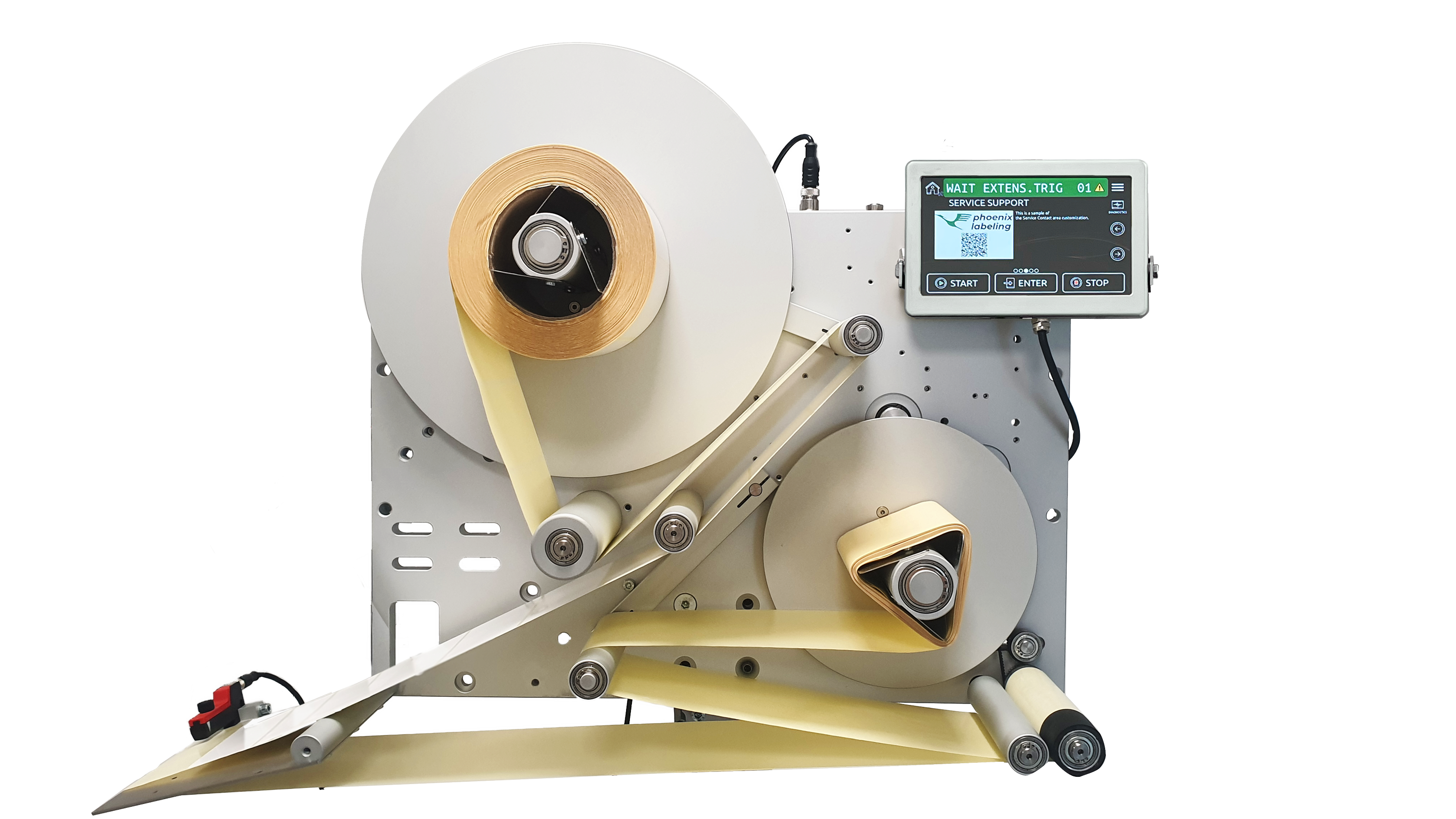

IMA Blade automatic labeler
Blade is a Label Applicator for self-adhesive labels, suitable for “wipe-on” application on moving products. It is a general-purpose machine, which was developed to cover most of labelling needs with standard pre-printed labels.
Blade comes in both right-hand or left-version and with two different paper width (120 and 180 mm) Two separate stepper motors (one pulling the paper, the second dedicated to rewinder) take care of the correct liner tensioning, in order to be accurate (+/-1 mm) and fast in dispensing (peak up to 70 m /min) , avoiding paper stretching and possible breaking.
Find all you need to know on features and performances in Phoenix AL122 brochure.
Main features
- Robust and corrosion resistant anodized aluminium and stainless-steel construction
- Compact dimensions
- It can apply at a linear speed up to 70 meters per minute
- Stepping motor driven, tension arm controlled rewinder mechanism
- Low force (< 50 N) on the moving parts assures the operator safety
- Multiple trigger inputs, allowing separate print and apply activation
- Splash proof control panel with large, clearly visible 2×20 characters display in option
- USB port for diagnostics, remote control, firmware upgrade and configuration, in option
- Universal power supply 90-264 VAC
